Product Overview
Product Overview

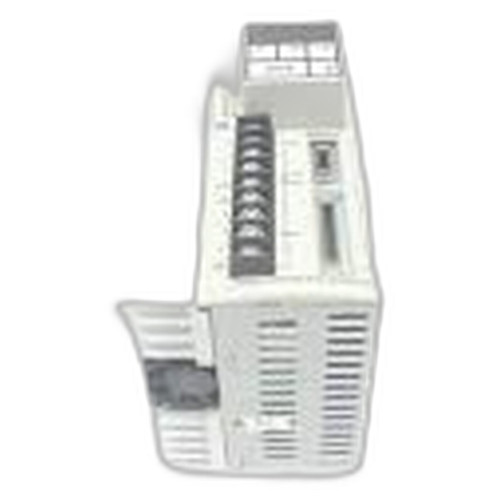

Technical specifications for 1394-DIM Manufacturer Allen Bradley Category Drives Product Line Bulletin 1394 Part Number 1394-DIM UPC 662453517902 Weight 7.81 lbs (3.54 kg) Module Type Drive Interface Input Voltage 530-680DC Volts Amperage 35 Static Gain 4.9 rms A/mV Efficiency 98% View as PDF Request a Repair Description The Allen-Bradley 1394-DIM is a 1394 Drive Interface Module Servo Controller. It functions as an interface between a 1394 GMC or a GMC Turbo system module and an external axis drive. Using it as part of the 1394 system lets the user control the axis modules, external drives, and motors of any size. The 1394-DIM passes a standard servo output signal from the system module to each external drive that is connected to it. It makes possible the connection of up to four remote actuators to the 1394 GMC or the 1394 GMC Turbo system modules. The 1394-DIM has an input voltage of 24V 50kHz and a maximum power dissipation of 30 Watts and 1500 V RMS signal isolation. It has a 0-10
Condition
This unit has been professionally inspected, tested, and cleaned. Backed by a 2-Year warranty, it is fully functional and ready for industrial deployment.
