Product Overview
Product Overview

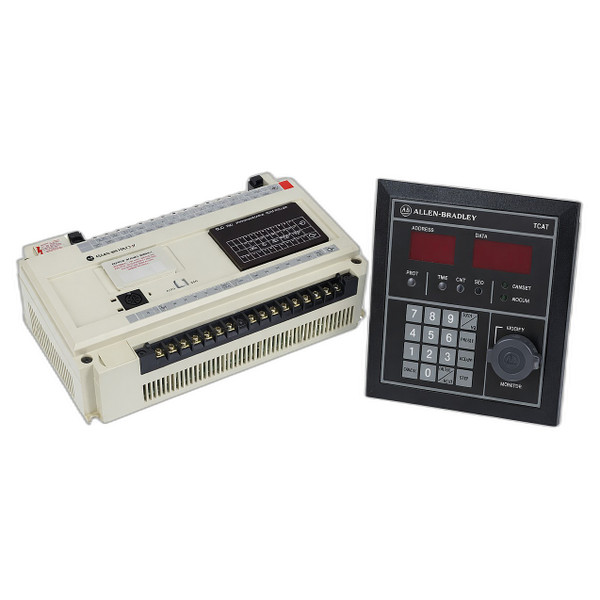

Technical specifications for 1745-E156 Manufacturer Allen Bradley Product Type Discrete I/O Expansion Module Product Line SLC 150 Part Number 1745-E156 Weight 4.00 lbs (1.81 kg) Connection Type 1745-C3 communication cable Power Requirements 15 VA Voltage Rating 10–30 VDC Terminals 20 digital, optically-isolated current sourcing inputs OFF-State Voltage max 4V at 1mA leakage current Nominal Current 4mA at 12V DC and 8mA at 24V DC Filter Delay 4 to 8 milliseconds (ON to OFF) Isolation Voltage 1500V DC (between input and control logic) Output Types 12 Hard Contact (Relay) and Transistor base outputs Relay Output Rating 10–125V DC; 2.5 Amps current; 28VA apparent power Transistor Output Range 10–50 VDC Transistor Current 1 A at 30°C Protection Type Bussman 3A, 250V AC slow-blow fuse View as PDF Request a Repair Description The 1745-E156 from Allen Bradley operates as a discrete I/O ex
Condition
This unit has been professionally inspected, tested, and cleaned. Backed by a 2-Year warranty, it is fully functional and ready for industrial deployment.
