Product Overview
Product Overview

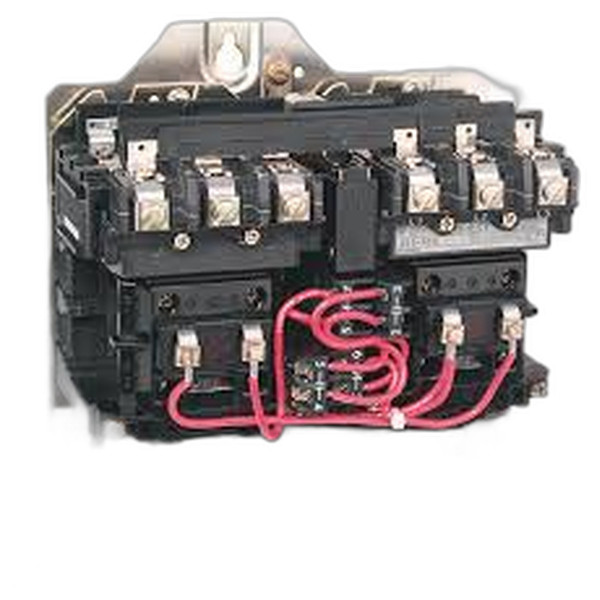

Technical specifications for 505-FOD Manufacturer Allen Bradley Product Type Reversing Starter Product Line Bulletin 505 Part Number 505-FOD Weight 75.00 lbs (34.02 kg) UPC 781180245695 Enclosure Design Open-type enclosure Continuous Current Capacity 270 Amperes Type of Overload Relay Eutectic alloy relay Overload Relay Type Equipped with an eutectic alloy relay Rated Service Limit Current 311 Amperes Mechanical Endurance 5 million operations Nominal Coil Voltage 115/120 Volts AC Number of Poles 3 poles Operating Time 25 milliseconds (pick-up) and 18 milliseconds (drop-out) on average NEMA Rating NEMA Type 5 Maximum Circuit Closing Inrush Current 3,163 Amperes System Frequency 50 to 60 Hertz Mounting Position Surface mount Request a Repair Description The 505-FOD is part of Allen Bradley’s Bulletin 505 series and is classified as a reversing starter. This unit is designed to handle demanding applications, maintaining a continuous current capacity of up to 270 Amperes. When operating
Condition
This unit has been professionally inspected, tested, and cleaned. Backed by a 2-Year warranty, it is fully functional and ready for industrial deployment.
