Product Overview
Product Overview

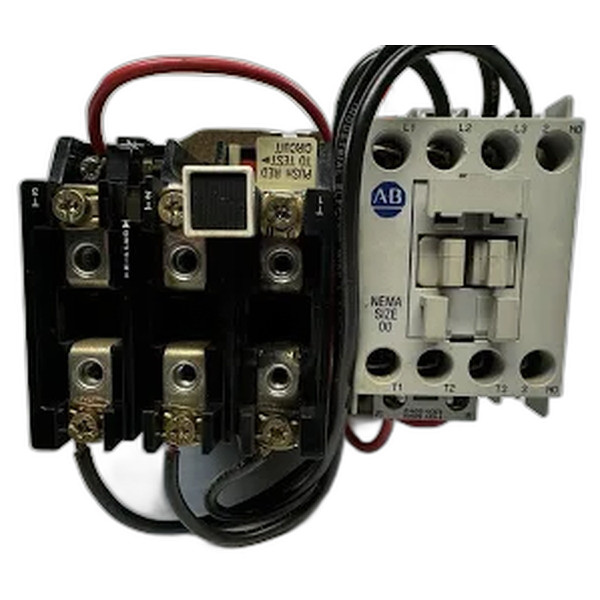

Technical specifications for 509-DOH Manufacturer Allen Bradley Product Type Non-Reversing Motor Starter Product Line Bulletin 509 Part Number 509-DOH Weight 4.31 lbs (1.96 kg) UPC 781180218569 Continuous Current 90 A Service Limit 104 A Line Voltage 200–208 V AC, 60 Hz Control Voltage 208 V AC, 60 Hz Phases 3-phase Enclosure Open Style NEMA Size 3 Max Motor Power 25 HP Overload Relay Eutectic Thermal Starter Type Direct-on-Line (DOL) Inrush Current 947 A Peak Coil Voltage Range 85–110% Nominal Request a Repair Description The 509-DOH from Allen Bradley is engineered as a non-reversing motor starter, ensuring reliable operation for various industrial applications. It operates effectively at a line voltage of 200 to 208 volts AC and is designed to support 3-phase configurations at 60 Hz. With a continuous current rating of 90 A, it provides adequate power handling, while the service limit extends to 104 A, allowing for brief periods of increased demand. This motor starter has a maxi
Condition
This unit has been professionally inspected, tested, and cleaned. Backed by a 2-Year warranty, it is fully functional and ready for industrial deployment.
