Product Overview
Product Overview

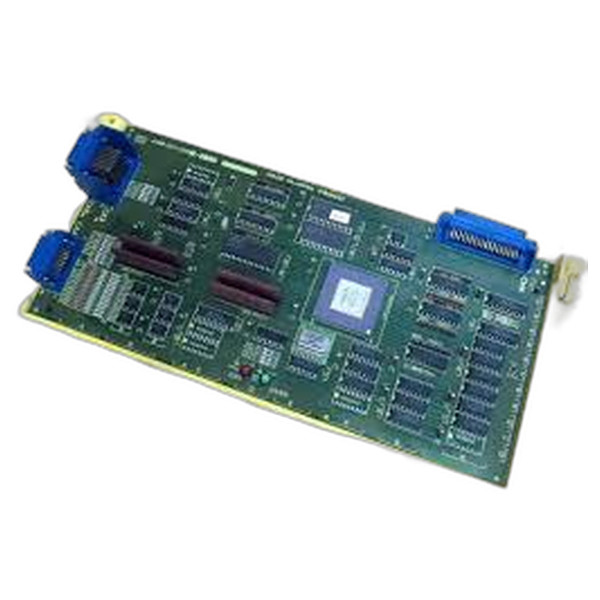

Technical specifications for 8520-DH1 Manufacturer Allen Bradley Product Type Adapter Module Product Line 8520 CNC Controllers Part Number 8520-DH1 Weight 1.88 lbs (0.85 kg) Protection Features Overcurrent, Motor Fault Feedback Input Motor Current Sensing Voltage 24 VDC Control Logic Motor Axes Supported 3 Axes Current Monitoring Per Axis Control Signal Type PWM (Pulse Width Modulation) Output Signal Drive OK/Axis Enable Communication Protocol EtherNet/IP, Modbus TCP, PROFINET Compatible System 9-Series CNC Interface Type Digital Servo Amplifier Application CNC/Industrial Automation Connector Type PCB Edge/Terminal View as PDF Request a Repair Description The Allen Bradley 8520-DH1 adapter module is a crucial component for 9-Series CNC systems, engineered to enhance monitoring and control functions. At its core, the device operates with a control logic voltage of 24 VDC, which ensures compatibility with standard control circuits used in CNC settings. This module effectively supports up
Condition
This unit has been professionally inspected, tested, and cleaned. Backed by a 2-Year warranty, it is fully functional and ready for industrial deployment.
