Product Overview
Product Overview

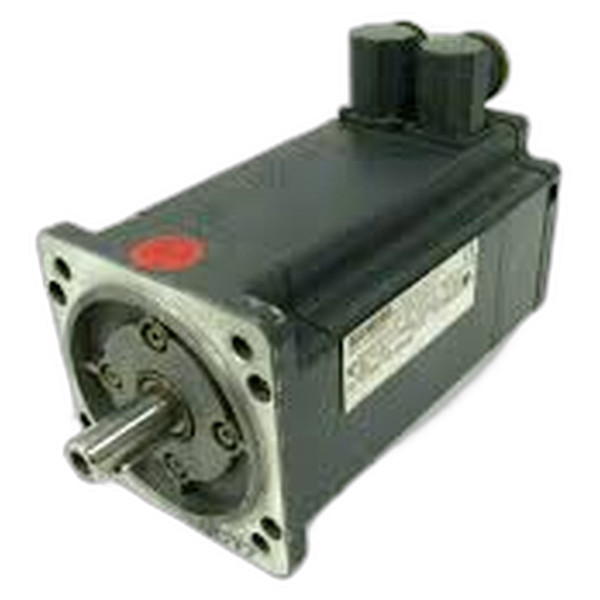

Technical specifications for 1FT5042-0AF71-1 Manufacturer Siemens Product Line SIMODRIVE Part Number 1FT5042-0AF71-1 EAN 4019169393508 Weight 20.00 lbs (9.07 kg) Product Description AC Servo Motor Nominal Power 2.8 kW Rated Voltage 200–240 V Rated Current 4.2 A Frequency 50/60 Hz Motor Type Synchronous AC Servo Motor Nominal Speed 3000 RPM Rated Torque 8.7 Nm Peak Torque 26.1 Nm Rotor Inertia 0.013 kg·m² Insulation Class Class F Cooling Method Self-ventilated (IC 410) Mounting Type Flange Mount Encoder Type Incremental Encoder (absolute encoder option available) Mechanical Shaft Code B5 Flange Request a Repair Description The Siemens SIMODRIVE 1FT5042-0AF71-1 is an AC servo motor designed for high-performance applications. It boasts a power rating of 2.8 kW, enabling effective torque generation and control. Operating at 200–240 V, the motor draws a rated current of 4.2 A, functioning efficiently across both 50 Hz and 60 Hz frequencies. Speed performance is rated at 3000 RPM, deli
Condition
This unit has been professionally inspected, tested, and cleaned. Backed by a 2-Year warranty, it is fully functional and ready for industrial deployment.
