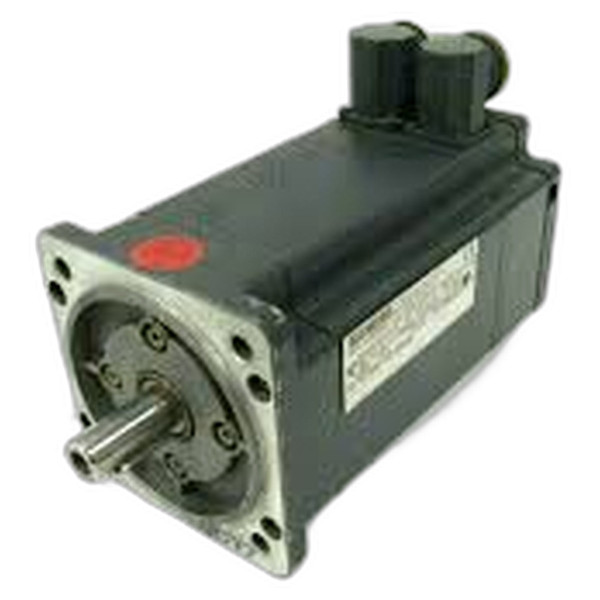

Technical specifications for 1FT5104-0AC71-1 Manufacturer Siemens Product Type AC Servo Motor Product Line 1FT5 Part Number 1FT5104-0AC71-1 Weight 35.00 lbs (15.88 kg) Torque Constant (kT) 1.09 Nm/A Voltage Constant (kE) 123 V / 1000 RPM Winding Resistance per Phase 0.095 Ω Phase Inductance 1.7 mH DC Link Voltage Rating 600 V DC Rated Torque (100 K Winding) 45 Nm Rated Speed (Continuous) 2000 RPM Rated Current 45 A Cooling Method Non-ventilated Protection Class IP 64 Mounting Arrangement IM B5 (IM V1, IM V3) Feedback Devices Incremental Encoder + Tachogenerator Mass (with Brake) 47 kg Request a Repair Description The Siemens 1FT5104-0AC71-1 AC servo motor is engineered for high performance. Its torque constant is measured at 1.09 Nm/A, while the voltage constant is rated at 123 V per 1000 RPM. This motor's winding resistance per phase is 0.095 ohms, and it showcases a phase inductance o
Condition
This item is new surplus inventory and has never been installed in an industrial environment. Original manufacturer packaging may not be available. The unit may show minor shelf wear from storage or handling. Backed by a 2-Year warranty, this component is ready for industrial use, spare inventory, system expansion, and replacement applications.
