Product Overview
Product Overview

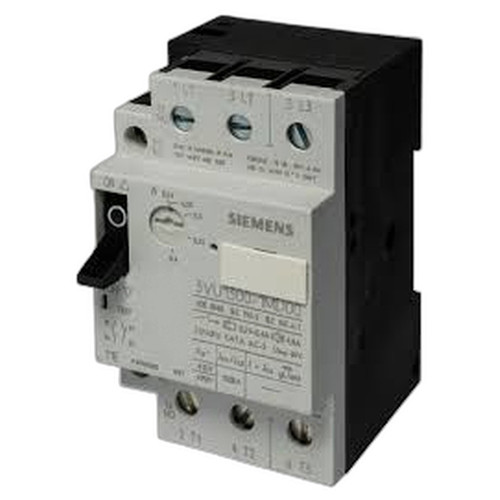

Technical specifications for 3VU1 300 1MM00 Manufacturer Siemens Product Line 3VU Part Number 3VU1 300 1MM00 EAN 4011209067943 Weight 0.31 lbs (0.14 kg) Name Motor Protection Circuit Breaker Number of Poles 3 Maximum Rated Current 25A Permissible Ambient Temperature -20 to +55 °C Rated Operational Voltage 230 V Rated Frequency 50/60 Hz Rated Impulse Withstand Voltage 6 kV Rated Operational Current 3 Amps Protections Overload, Short Circuit, Phase Loss Protection Fuse Monitoring Yes Terminals Type Screw Terminals Auxiliary Contacts 1 Normally Open (NO) + 1 Normally Closed (NC) Protection Class IP20 Mounting Type DIN Rail Mountable Request a Repair Description The Siemens 3VU1 300 1MM00 serves as a reliable motor protection circuit breaker suitable for several operational environments. With three poles, this device is capable of managing a maximum rated current of 25 amps. Engineered to function effectively in ambient conditions between -20 and +55 °C, it is versatile for various appli
Condition
This item is new surplus inventory and has never been installed in an industrial environment. Original manufacturer packaging may not be available. The unit may show minor shelf wear from storage or handling. Backed by a 2-Year warranty, this component is ready for industrial use, spare inventory, system expansion, and replacement applications.
