Product Overview
Product Overview

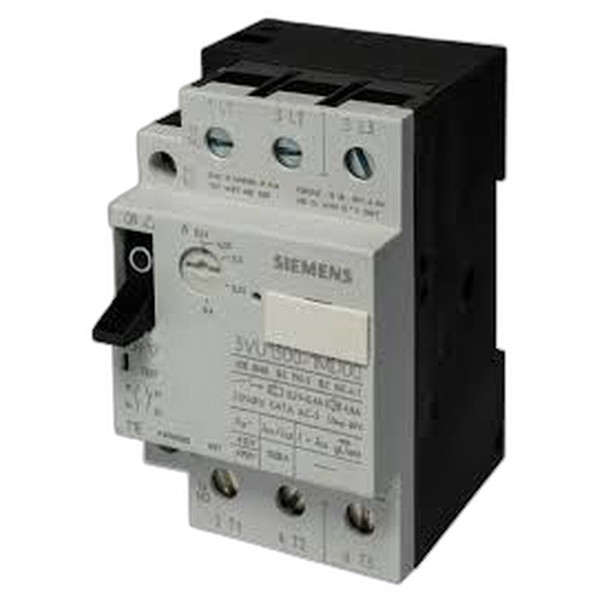

Technical specifications for 3VU1300-1MK00 Manufacturer Siemens Product Type Motor Protection Circuit Breaker (MPCB) Product Line 3VU Part Number 3VU1300-1MK00 EAN 4011209067929 Weight 0.56 lbs (0.26 kg) Rated Current Range 4 to 6 A (adjustable overload release) Short Circuit Release Setting 72 A (instantaneous trip for short circuit protection) Number of Poles 3-pole Auxiliary Contacts 1 NO (Normally Open) + 1 NC (Normally Closed) Rated Insulation Voltage 690 V AC Rated Operational Voltage (Ue) 690 V AC / 250 V DC Rated Frequency 50/60 Hz Rated Short Circuit Breaking Capacity (Icu) 10 kA at 415 V AC (without current limiter) Current Limiter Compatibility Can be used with a current limiter to increase breaking capacity to 50 kA Trip-Free Mechanism Yes (cannot be overridden by the toggle switch position) Ambient Temperature Range -25°C to +55°C (with full rated current up to 55°C) Mounting DIN rail mounting Terminal Type Screw terminals Mechanical Life 20,000 operations Request a Rep
Condition
This unit has been professionally inspected, tested, and cleaned. Backed by a 2-Year warranty, it is fully functional and ready for industrial deployment.
