Product Overview
Product Overview

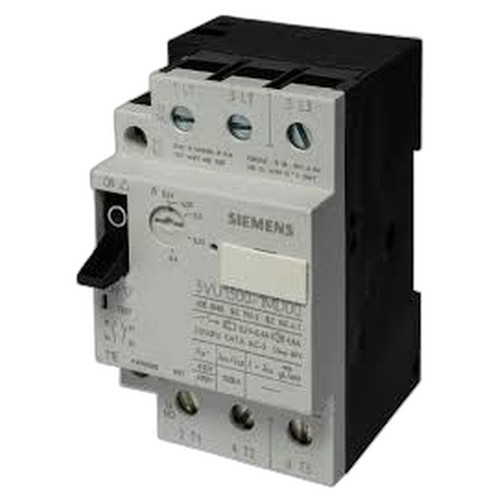

Technical specifications for 3VU1600-1MP00 Manufacturer Siemens Product Line 3VU Part Number 3VU1600-1MP00 EAN 4011209068582 Weight 1.81 lbs (0.82 kg) Product Motor Starter Rated Operational Voltage 690 V AC Current Setting Range 6.3–10 A Breaking Capacity 100 kA at 400 V AC Trip Class Class 10 (Overload and Short-circuit Protection) Number of Poles 3 poles Control Type Toggle Actuator Mounting Mounting Type DIN Rail Mountable Ambient Temperature Range -20 °C to 60 °C Terminal Type Screw Terminals Standards IEC, UL/CSA certifications Application Motor protection in industrial control panels Request a Repair Description The 3VU1600-1MP00 from Siemens stands as a motor starter designed to deliver robust performance. It operates at a maximum voltage of 690 V AC and is capable of handling a current setting that ranges between 6.3 to 10 A. With a breaking capacity of 100 kA, it is well-suited for high-demand applications operating at 400 V AC. The device is categorized under Class 10, p
Condition
This unit has been professionally inspected, tested, and cleaned. Backed by a 2-Year warranty, it is fully functional and ready for industrial deployment.
