Product Overview
Product Overview

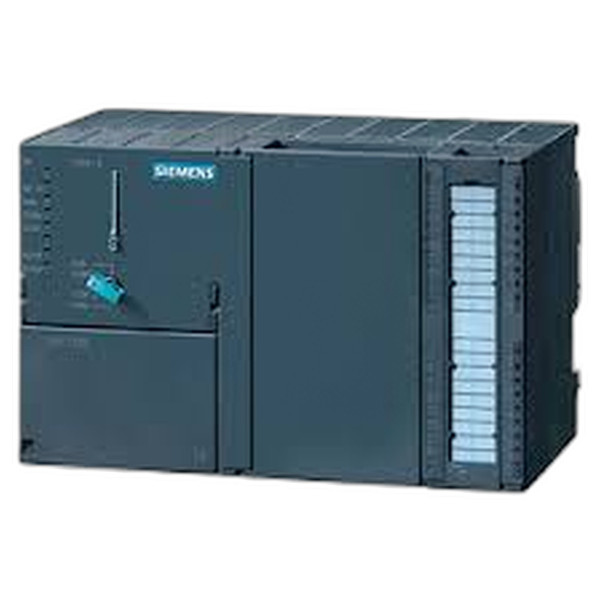

Technical specifications for 6AU1425-0AA00-0AA0 Manufacturer Siemens Product Line SIMOTION Part Number 6AU1425-0AA00-0AA0 UPC 662643026764 Weight 6.88 lbs (3.12 kg) Series HMIs Controller Model Designation D425 Programmable Motion Controller Maximum Controllable Axes 16 axes Integrated Drive Axis Capacity Servo (6), Vector (4), V/f (8) Communication Interfaces 4×DRIVE-CLIQ, 2×PROFIBUS, 2×Ethernet, 2×USB, 1×Expansion slot Work Memory Capacity 48 MB RAM, 20 MB dedicated for Java Non-volatile Storage (User Data) 300 MB on CompactFlash DC Input Voltage Range 20.4–28.8 VDC Typical Power Consumption 15 W Operating Temperature Range 0–55°C (derated at high altitude) Digital I/O Configurability 8× programmable as DI/DO, measuring inputs, or output cams Input Signal Thresholds 15–30 V (High), -3–5 V (Low) Output Current per Channel (Max) 500 mA Signal Delay (Input Rise/Fall) 5 µs (rise), 50 µs (fall) for configurable I/Os Switching Frequency (Resistive Load) 100 Hz Physical Dim
Condition
This unit has been professionally inspected, tested, and cleaned. Backed by a 2-Year warranty, it is fully functional and ready for industrial deployment.
