Product Overview
Product Overview

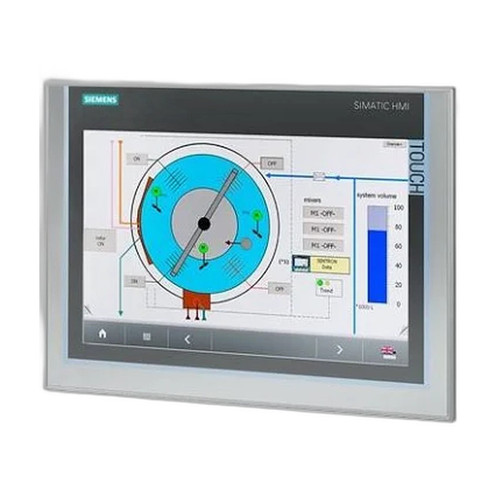

Technical specifications for 6AV7884-2AA10-3BD0 Manufacturer Siemens Product Type Industrial Panel PC (HMI IPC 477C) Product Line SIMATIC Part Number 6AV7884-2AA10-3BD0 Weight 33.00 lbs (14.97 kg) Display 15-inch TFT touchscreen (1024 x 768 pixels) Backlight Durability 50,000 hours MTBF at 25°C ambient temperature Processing Unit Intel Celeron M/Core2Solo/Core2Duo (1.2 GHz base clock) System Memory 1 GB DDR3 RAM (supports expansion to 4 GB) Storage Options Configurable CompactFlash or SSD (minimum 32 GB) Power Input 24 V DC nominal voltage (140 W peak consumption) Communication Interfaces 5x USB 2.0 ports (front/rear), PROFINET via dual RJ45 (10/100/1000 Mbps) Ingress Protection Front panel IP65-rated (dust-tight, water-resistant) Operational Temperature Limits 0°C to 50°C ambient range Vibration Tolerance 10–200 Hz frequency range; 9.8 m/s² acceleration (58–200 Hz) Shock Resistance Withstands 5g (50 m/s²) shock for 30 ms Physical Dimensions 483 mm (W) x 310 mm (H) x 75 mm (D)
Condition
This item is new surplus inventory and has never been installed in an industrial environment. Original manufacturer packaging may not be available. The unit may show minor shelf wear from storage or handling. Backed by a 2-Year warranty, this component is ready for industrial use, spare inventory, system expansion, and replacement applications.
