Product Overview
Product Overview

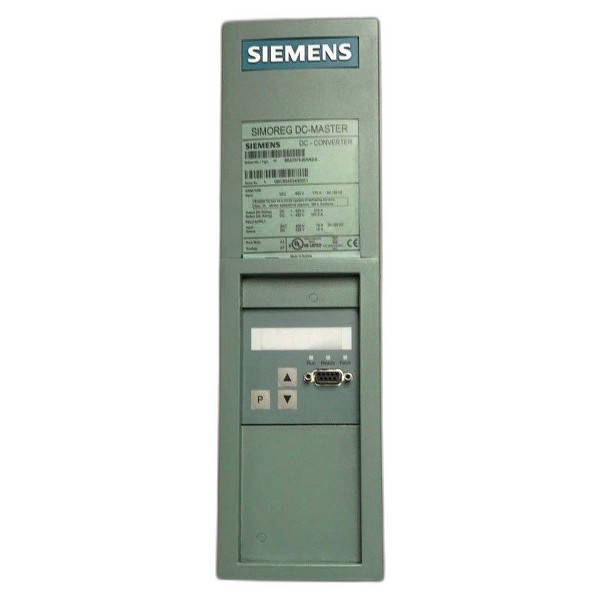

Technical specifications for 6RA7028-6DS22-0 Manufacturer Siemens Product Line SIMOREG Part Number 6RA7028-6DS22-0 UPC 662643475548 Weight 17.25 lbs (7.82 kg) Product Microprocessor-Based Converter Compatible Drives Variable-Speed DC Drives Voltage 400V AC Output Current 90 Amps Phase 3-Phase DC Output Voltage 485V DC Automotive Applications Supported Aerospace Applications Supported Power Generation Applications Supported Electronics Applications Supported Operating Temperature 0 to 40 degrees Celsius Storage Temperature 0 to 50 degrees Celsius Maximum Operating Relative Humidity 80%, non-condensing Maximum Storage Relative Humidity 80%, non-condensing Maximum Operating Altitude 1000m above sea level Request a Repair Description The Siemens SIMOREG converter model 6RA7028-6DS22-0 is engineered to facilitate control for variable-speed DC drives. Rated for 400V AC input, it offers a robust output current of 90 Amps. The converter operates in a three-phase configuration and provides a DC
Condition
This unit has been professionally inspected, tested, and cleaned. Backed by a 2-Year warranty, it is fully functional and ready for industrial deployment.
