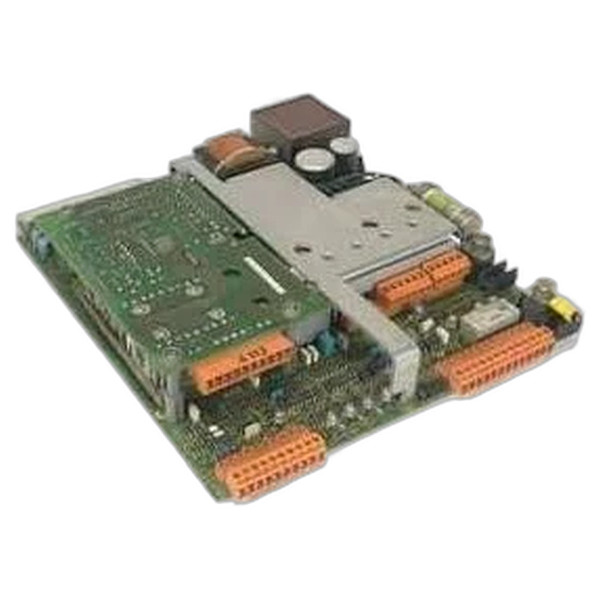

Technical specifications for 6SC6130-0FE00 Manufacturer Siemens Product Type AC Feed Drive Power PCB Product Line SIMODRIVE Part Number 6SC6130-0FE00 Weight 1.06 lbs (0.48 kg) Rated Current 30 Amps (continuous operation) Peak Current Capacity 60 Amps (maximum short-term output) Axis Configuration Single-axis operation Unit Mass ~2.2 kg System Integration Compatible with SIMODRIVE 610 drive units Input Voltage 380–480 VAC, 3-phase Output Frequency 0–400 Hz Switching Frequency ~8 kHz DC Bus Voltage ~600 V Overload Capacity 150% of nominal current Operating Temperature 0°C to 50°C Efficiency ~97% Request a Repair Description The part number 6SC6130-0FE00 from Siemens falls under the SIMODRIVE series and serves as an AC feed drive power printed circuit board. Rated for continuous operation at 30 Amps, this device can tolerate peak currents reaching 60 Amps, providing substantial short-term output capabilities. This unit is built for single-axis operation and has an approximate weight
Condition
This unit has been professionally inspected, tested, and cleaned. Backed by a 2-Year warranty, it is fully functional and ready for industrial deployment.
