Product Overview
Product Overview

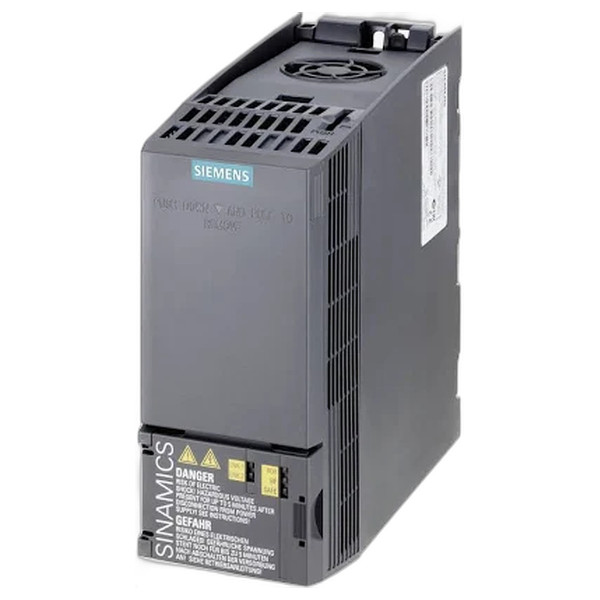

Technical specifications for 6SL3210-1NE24-5AL0 Manufacturer Siemens Product Line SINAMICS G120 Part Number 6SL3210-1NE24-5AL0 UPC 887621713225 Weight 15.00 lbs (6.80 kg) Name Power Module (PM230) for Inverter Supply Voltage 380 to 480 VAC Load Side Voltage Limit 0 to 456 VAC Phase Count 3-phase Supply Frequency 47 to 63 Hz Load Frequency 0 to 550 Hz (V/F Control Mode), 0 to 240 Hz (Vector Control Mode) SCCR 65kA RMS Pulsation Frequency 4 kHz (Nominal), 2 to 16 kHz (Max.) Enclosure Rating IP20 RFI Filter Integrated Maximum Operating Altitude Up to 1000 m (3281 ft) Nominal Power (LO/HO) 22/18.5 kW (30/25 HP) Input Phase Current (LO/HO) 42A/36A Output Current Capacity (LO/HO) 45A/38A Humidity Condition 5% to 95% (non-condensing) Request a Repair Description The Siemens 6SL3210-1NE24-5AL0 Power Module (PM230) is engineered for inverter systems within the SINAMICS G120 series. This unit accommodates a supply voltage metric ranging from 380 to 480 VAC and supports a three-phase supply struc
Condition
This unit has been professionally inspected, tested, and cleaned. Backed by a 2-Year warranty, it is fully functional and ready for industrial deployment.
