Product Overview
Product Overview

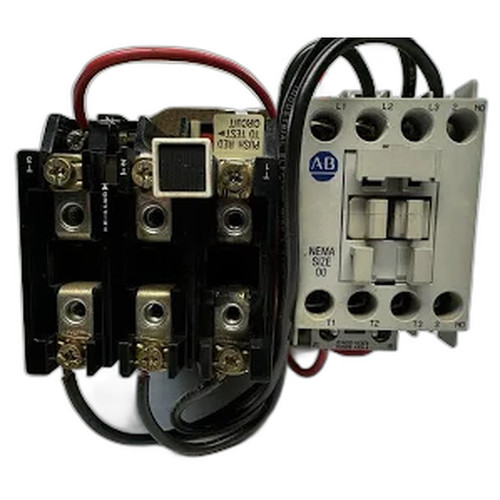

Technical specifications for 509-DOD Manufacturer Allen Bradley Product Type DOL motor starter Product Line Bulletin 509 Part Number 509-DOD Weight 14.00 lbs (6.35 kg) UPC 781180218545 Control Voltage at 50 Hz 110 V AC Control Voltage at 60 Hz 120 V AC Continuous Current 90 A Service Limit Current 104 A Inrush Peak Current 947 A Maximum Motor Power 7.5 hp Transformer Rating 8.1 kVA Capacitor Load 67 kVAR Main Terminals Screw Mechanical Life 5 million operations Maximum Temperature 65 degrees Celsius Altitude Limit 10,000 ft Request a Repair Description The Allen Bradley 509-DOD serves as a direct-on-line (DOL) motor starter optimized for various industrial applications. This starter is capable of operating at control voltages of 110 V AC at 50 Hz or 120 V AC at 60 Hz, making it versatile across different operational environments. With a continuous current rating of 90 A, it can handle substantial loads without compromise. In scenarios where high-demand starts occur, the device can with
Condition
This unit has been professionally inspected, tested, and cleaned. Backed by a 2-Year warranty, it is fully functional and ready for industrial deployment.
