Product Overview
Product Overview

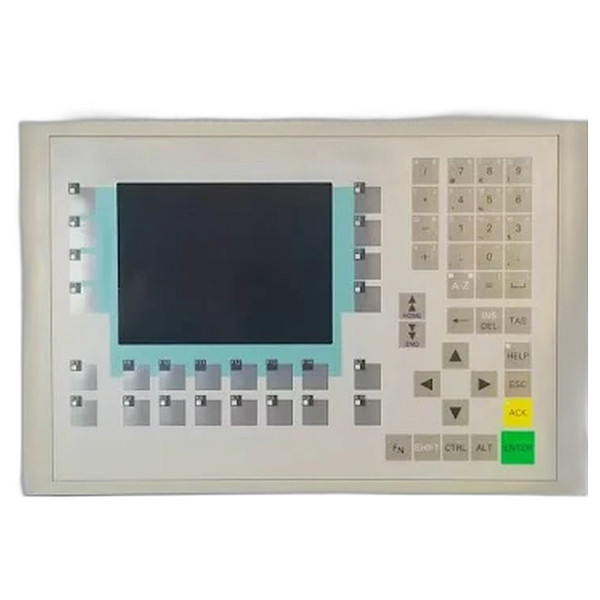

Technical specifications for 6AV6542-0CA10-0AX0 Manufacturer Siemens Product Type Operator panel Product Line SIMATIC Part Number 6AV6542-0CA10-0AX0 Weight 2.00 lbs (0.91 kg) Power Supply 24 Volts DC Rated Current 0.6 Amps UPS Connectable Yes Backup Battery Optional User Memory 2048 kB Clock Type Hardware Display Size 5.7 inch Display Resolution 320 x 240 Backlight MTBF >40,000 hours Color Display Yes Control Element Membrane keyboard Front Degree of Protection IP65 Rear Degree of Protection IP20 Interfaces RS-232, RS-485, RS-422, USB Request a Repair Description For efficient user interaction, the Siemens 6AV6542-0CA10-0AX0 operator panel is constructed to provide a high level of functionality. It is powered by a 24 Volts DC supply and maintains operation with a rated current of 0.6 Amps. This unit can also connect to an uninterruptible power supply (UPS), and it offers an optional backup battery to ensure continuous operation. The operator panel features a user memory capacity of
Condition
This unit has been professionally inspected, tested, and cleaned. Backed by a 2-Year warranty, it is fully functional and ready for industrial deployment.
