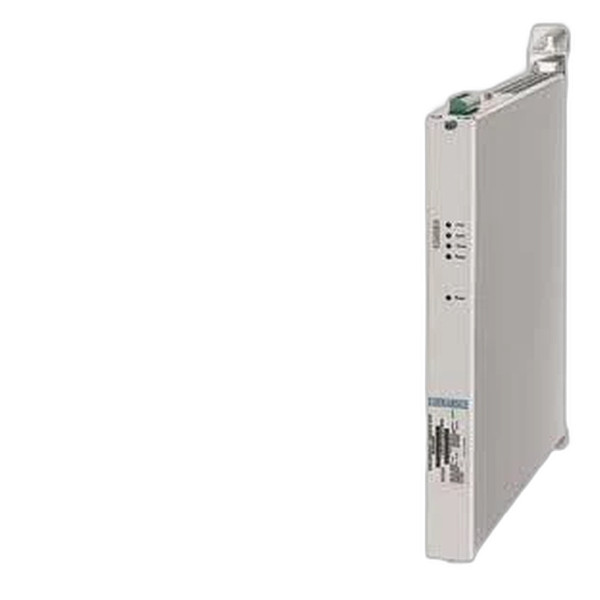

Technical specifications for 6SL3201-0BE21-8AA0 Manufacturer Siemens Product Line SINAMICS Part Number 6SL3201-0BE21-8AA0 UPC 887621217785 Weight 2.75 lbs (1.25 kg) Description Braking Resistor Resistance 75 Ω Rated Power 0.375 kW Maximum Power 7.5 kW (12 s, 5% duty cycle) DC Link Voltage Range 330 to 840 V DC Input Current (max) 2.5 A Temperature Switch Type Normally closed contact Temperature Switch Voltage (max) 250 V AC Temperature Switch Current (max) 2.5 A Enclosure Type IP20 Operating Temperature Range -25 to 40 °C Request a Repair Description The Siemens 6SL3201-0BE21-8AA0 is a braking resistor, primarily intended to manage excess energy in electrical drive systems. It features a resistance value of 75 Ω and has a constant rating power of 0.375 kW. For brief intervals, it can withstand maximum power loads reaching up to 7.5 kW with a 5% duty cycle. The component operates within a DC link voltage range of 330 to 840 V DC. Max input current can be accommodated at 2.5 A, ensuri
Condition
This item is new surplus inventory and has never been installed in an industrial environment. Original manufacturer packaging may not be available. The unit may show minor shelf wear from storage or handling. Backed by a 2-Year warranty, this component is ready for industrial use, spare inventory, system expansion, and replacement applications.
