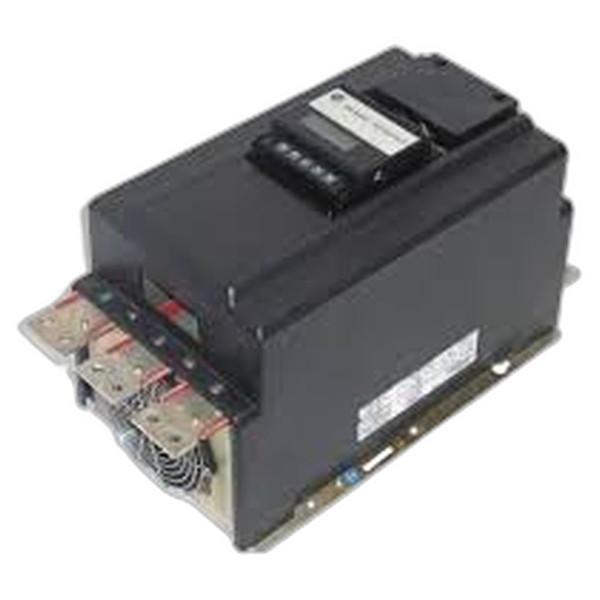

Allen-Bradley 150-B97NCD is a Motor controller used in industrial automation systems. It belongs to the SMC Dialog Plus family.
Product Highlights
- Product Line: SMC Dialog Plus
- Product Type: Motor controller
- Voltage: 200 to 575 Volts AC
- Enclosure: Open
Application & Compatibility
The Allen-Bradley 150-B97NCD controller comes with an open enclosure which requires 0 to 50 degrees Celsius of ambient temperature for optimal performance. This solid-state motor controller is part of the SMC Dialog Plus product line and it is rated for 97 Amps of output current. When 460 Volts AC voltage is applied at the controller input, this motor controller can deliver 5 to 75 Horsepower at its output. The 150-B97NCD controller supports a very wide range of input voltages from 200 Volts AC to 575 Volts AC. The controller does not support single-phase input. Only three-phase input voltage with either 50 or 60 Hertz line frequency is supported. By default, the 150-B97NCD controller supports six motor control modes including the full voltage, dual ramp and soft start mode. A further six optional control modes are supported and they can be ordered from the manufacturer when required. The control voltage range supported by the 150-B97NCD controller is from 100 to 240 Volts AC. The 150-B97NCD controller is designed for 2-wire and 3-wire control for a wide range of industrial applications. The 150-B97NCD controller can be connected with or without an isolation contactor. The configur
Always verify the exact part number, electrical ratings, control options, and installed system compatibility before installation.
Condition: Refurbished
This unit has been professionally inspected, tested, and cleaned. Backed by a 2-Year warranty, it is fully functional and ready for industrial deployment.
